PVDF Tee

Tee PVDF fit ex materia fluoride (PVDF) quae miram resistentiam chemicae corrosionis habet, vires mechanicas et resistentiam tempestatis. Tee PVDF praecipue adhibetur ad directionem fluoris fluidi mutandam, praesertim ubi fistulam rami principalis pipeline requirit. Tee insertis, fluidum a pipelino principali in duos vel plures fistulas ramulos leniter averti potest, ut distributionem et transmissionem fluidi obtineat. Inde PVDF late usus in variis campis, praesertim in condicionibus quae fluidum transmissionis efficientem et stabilem requirunt.

ORDER SAMPLES

Materia: PVDF
Pressura Ratings: 0.6MPa, 1.0MPa
Connection Methodi: Socket et Spigot, Welding
Color: Alba
Production Signa: ISO 10931, DIN 8077/8078, EN 14577
Densitas: 1.17~1.79 g/cm³
Tab
Diu terminus usus Environmental Temperature Range: -40 ad CL°C
Calor Deflexionis Temperaturae: 112 ad 145°C

Product parameter introduction

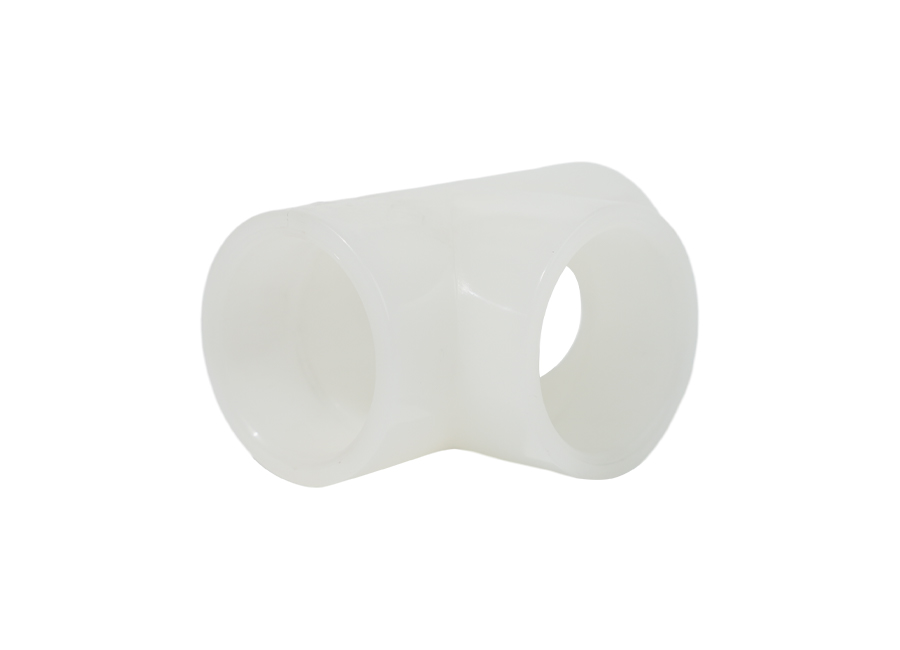

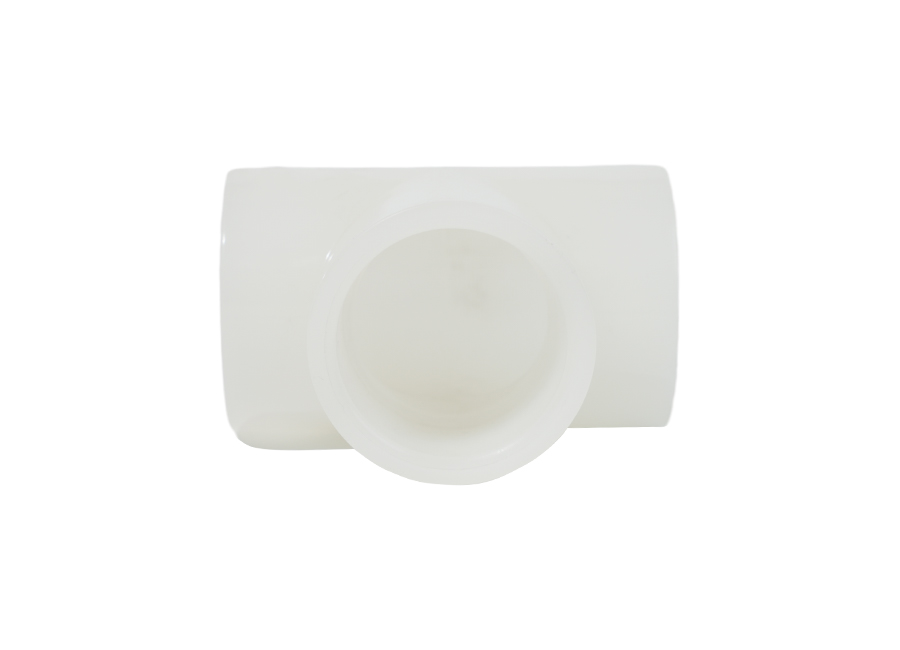

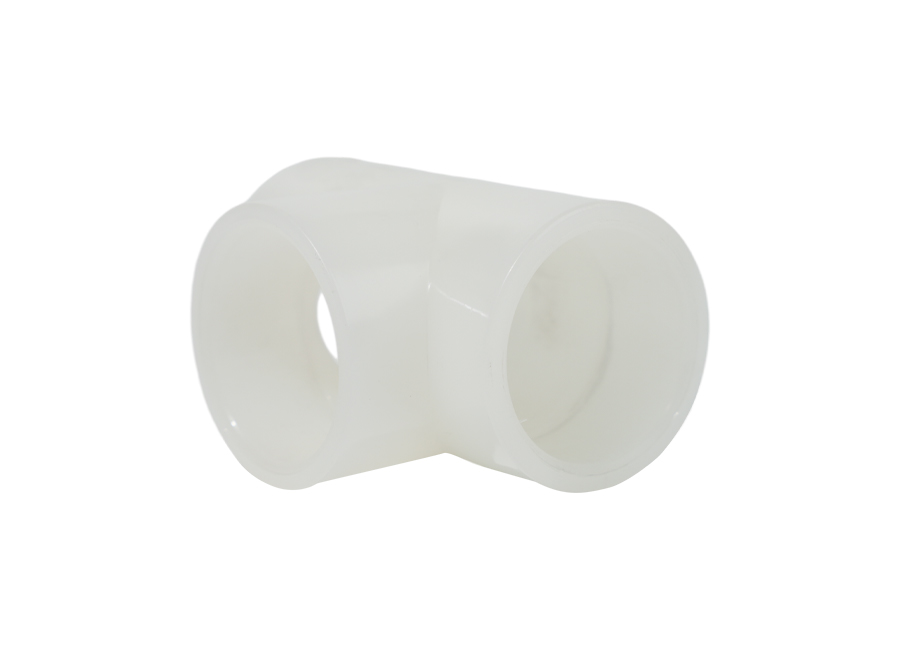

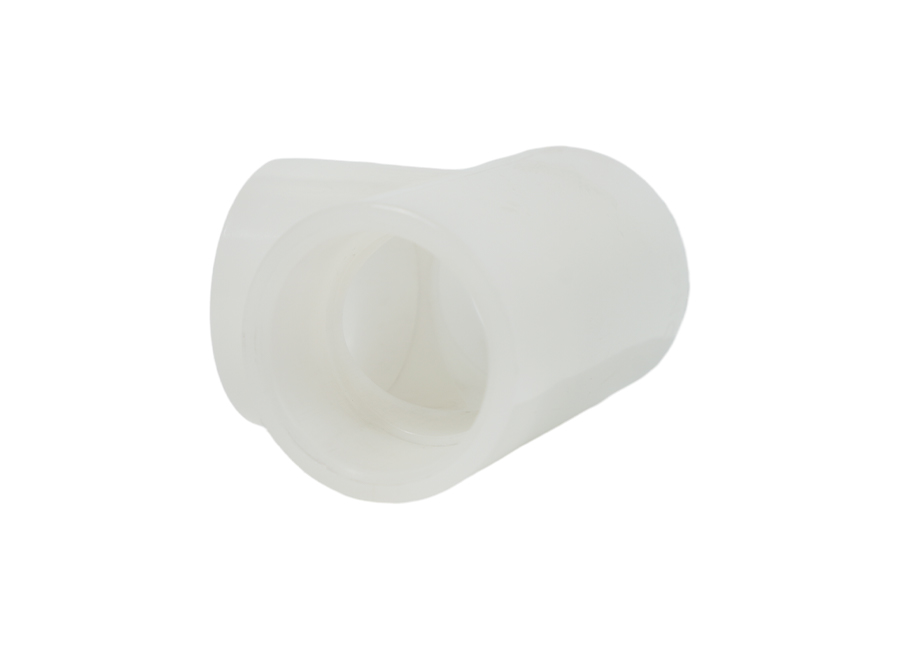

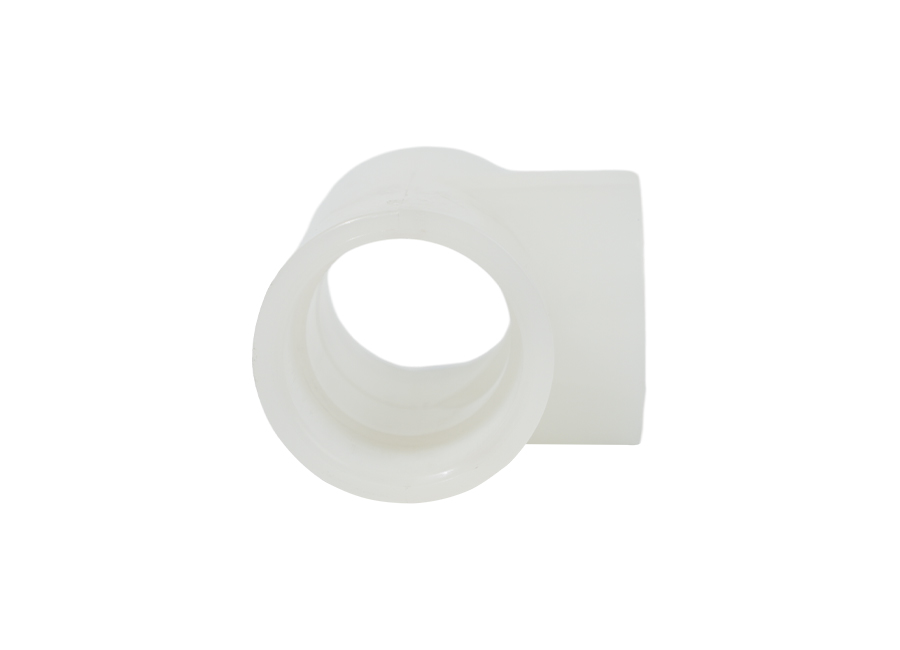

PVDF Tee PVDF Tee

PVDF
DN	D1	d1	d2	L	Z
15	26	20	16	56	15
20	31	25	21	64	18
25	39	32	27	76	20
32	51	40	35	88	22
40	64	50	45	102	24
50	81	63	57	124	28
65	93	75	68	152	31
80	114	90	82	176	35
100	134	110	100	212	41

PVDF petat welding tee
DN	D	S	L1	L2
15	20	1.9	70	35
20	25	1.9	80	40
25	32	2.4	89	44.5
32	40	2.4	100	50
40	50	3.0	120	60
50	63	3.0	149	74.5
65	75	3.6	175	87.5
80	90	4.3	181	90.5
100	110	5.3	223	11.5
125	140	6.7	293	146.5
150	160	7.7	315	157.5
200	225	10.8	400	200
250	280	13.4	495	247.5
300	315	15.0	528	264

PVDF Tee advantages

1. PVDF tees efficaciter possunt fluidum ab unico pipelino in duos vel plures fistulas derivare.
2. Designatio fabricae tearum PVDF flexibilis est et capax ad necessitates diversarum organorum magnitudinum ac nexuum methodorum accommodatas. Utrum tibiae diametri magnae vel parvae sint vel nexus directos vel indirectos, PVDF tes solutiones idoneas praebere possunt.
3. PVDF tees certae obsignationis effectus offerunt, efficaciter ad impediendum lacus fluidum et ad operationem systematis pipelinei tutandam.
4. Institutionem et sustentationem teorum PVDF simplicia et convenientia sunt relative, cum consilio normato, quo processus institutionem magis normatum et efficacem facit. Tee structura simplex est, et facilis ad inspicienda et reparanda, quae difficultatem et sumptus conservandi minuere possunt

Applications

01 / 01

Industry chemica

Industry chemica

In productione chemica industriali, saepe necesse est ut fluxum fluidorum accurate dividat, componat et coerceat. Ut typum tibiae connectoris conveniens, consilium PVDF tearum permittit pro flexibili humorum distributione inter plures fistulas, eo quod subtilis umoris moderamen obtinet. Haec utilitas praecipua est momenti in reactionibus chemicis et processibus translationis materialibus, quae efficaciter emendare efficientiam productionis et gratuita productione minuere possunt. Systema pipelinea in chemiae industriae plerumque satis implicatae sunt et nexus requirunt tibiarum variarum magnitudinum et materiarum. PVDF tes, cum diversis connexionibus methodi, facile possunt accommodare ad necessitates diversorum systematum pipelinorum. Praeterea, PVDF tees potest etiam nativus secundum actuales necessitates occurrere requisitis pro transmissione fluidi sub certis conditionibus processu..
