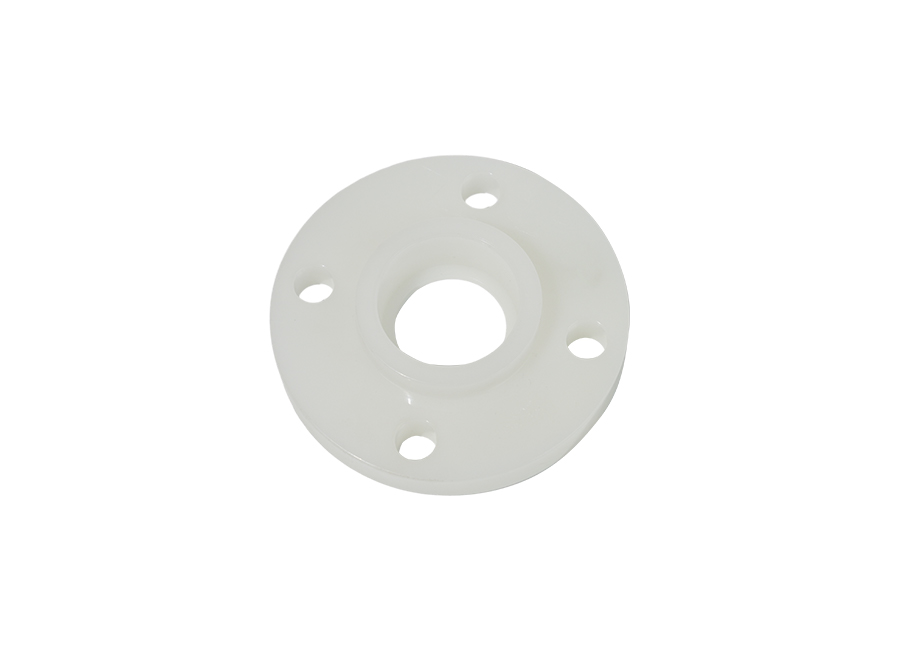

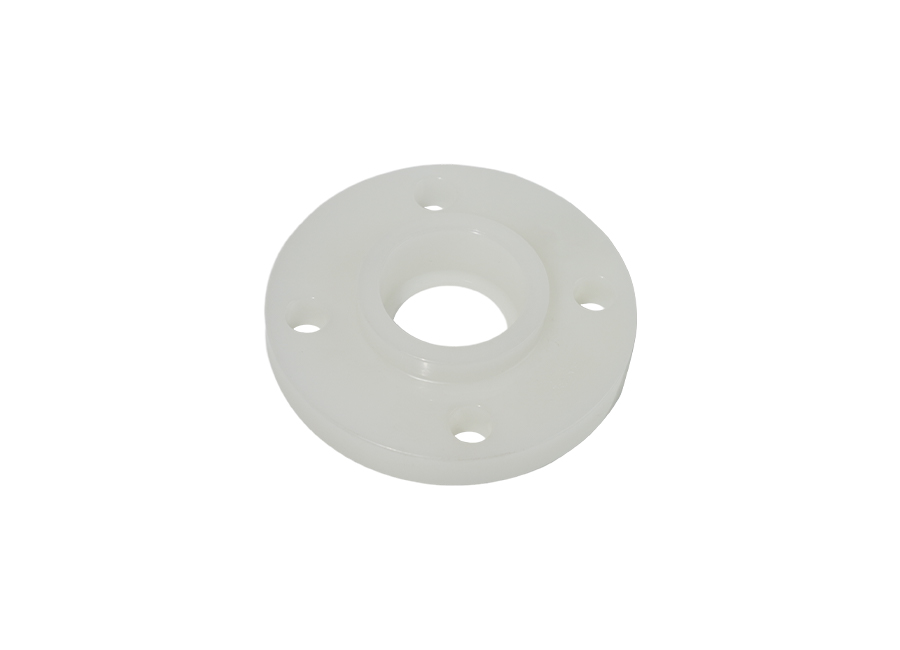

PVDF Neck-weld flange

PVDF LABIUM Neck-weld est nexus componentium ad PVDF fistulae systemata specialiter destinata. Utens PVDF materia rudis adamussim fabricata est, proveniens qualitatem et durabilitatem producti. Unicum consilium colli flexae non solum stabilitatem nexus auget, sed etiam perficiendi totius limbi systematis signationem auget, efficaciter ultrices praecavens. Productum hoc varias pressionis aestimationes praebet ad necessitates diversarum applicationum. Sive in ambitus pressionis sive in medium pressus, PVDF globulus colli potest stabiliter operari ac praestantem observantiam exhibere. Connexio modus est glutino, qui efficit ut robur et nexum obsignandum miris sint. Coniunctiones iunctae non solum facile ad institutionem pertinent, sed etiam efficaciter resistunt exesi ambitus externi, dum diuturnum tempus stabilis operationis fistulae systematis procurat..

ORDER SAMPLES

Materia: PVDF
Pressura Ratings: 0.6MPa, 1.0MPa
Connection Methodi: Socket et Spigot, Welding
Color: Alba
Production Signa: ISO 10931, DIN 8077/8078, EN 14577
Densitas: 1.17~1.79 g/cm³
Tab
Diu terminus usus Environmental Temperature Range: -40 ad CL°C
Calor Deflexionis Temperaturae: 112 ad 145°C

Product parameter introduction

PVDF Neck-weld flange

Collum Flange
Nominal exterius diametri De	Diameter exterior DH	LABIUM exterius diametri D	Fulmen centrum foraminis circulus diametri D1	Pessulum foraminis diametri do	Bolt	crassitudine LABIUM b	Altitudo LABIUM H	Superficiem signantes		Collum Flange


								D2	F	N	R
32	32	120	85	14	4-M 12	16	60	68	2	46	4
40	40	140	100	18	4-M 16	18	60	78	2	62	4
50	50	150	110	18	4-M 16	18	60	88	3	70	6
63	63	165	125	18	4-M 16	20	60	102	3	86	6
75	75	185	145	18	4-M 16	22	80	122	3	104	6
90	90	200	160	18	4-M 16	24	80	138	3	118	6
110	110	220	180	18	8-M 16	24	80	158	3	140	6
125	125	220	180	18	8-M 16	24	80	158	3	140	6
140	140	250	210	18	8-M 16	26	80	188	3	168	6
160	160	285	240	22	8-M 20	28	80	212	3	195	8
180	180	285	240	22	8-M 20	28	80	212	3	195	8
200	200	340	295	22	8-M 20	34	100	268	3	246	8
225	225	340	295	22	8-M 20	34	100	368	3	246	8
250	250	395	350	22	12-M 20	38	100	320	3	298	10
280	280	395	350	22	12-M 20	38	100	320	4	298	10
315	315	445	400	22	12-M 20	42	100	370	4	350	10
355	355	505	460	22	16-M 20	46	120	430	4	400	10
400	400	565	515	26	16-M 23	50	120	482	4	456	10
450	450	615	565	26	20-M 24	50	120	530	4	502	12
500	500	670	620	26	20-M 24	52	120	585	4	559	12
560	560	730	675	30	20-M 27	54	160	635	5	610	14
630	630	780	725	30	20-M 27	58	160	685	5	680	14

PVDF Neck-weld flange advantages

1. Ex materia PVDF fabricata, mirabilis chemicae corrosionis resistentia, superior vis mechanica, et processabilitas bona, ad diuturnum tempus stabilitatem et firmitatem LABRICAE procurans.
2. Consilium colli flexae non solum auget connexionem virium inter LABIUM et tibiam, sed etiam efficaciter impedit lacus media, meliori obsignatione observantia totius systematis pipelini.
3. LABIUM Collum-Culpa variis instrumentis apta est, inclusa chemicis corrosivis et solutionibus organicis. Potest etiam stabilis observantia ponere supra amplis ambitum temperaturam, eamque aptam faciens variis ambitibus industrialibus implicatis.
4. Ex materia PVDF processuum fabricandis et probatissimis effectis, Collo-Windo Flang miram vetustatem habet. Diuturnum tempus stabilitatem ac fidem conservare potest etiam sub duris condicionibus operantes, sustentationem gratuita reducendo

Applications

01 / 01

Industry chemica

Industry chemica

In productione chemico, nonnullis processibus opus est sub condiciones calidissimae exerceri. PVDF materia resistentias altas temperaturas habet et stabiles proprietates mechanicas et stabilitatem chemicam in temperaturis superioribus ponere potest. Ergo, PVDF flanges cum collo ad glutino aptae sunt nexus pipelines sub condiciones altae temperaturae, ut tibiae in ambitibus calidis adhuc regulariter operari possint. Productio chemica summos requisita ad tibiarum munditiam habet, et superficies lenis PVDF flangum cum collo ad glutino designandum faciliorem et commodiorem facit purgationem et sustentationem. Hoc adiuvat ad minuendum tempus in processu productionis et efficientiam melioris productionis. Processus in productione chemica fluunt saepe multiplex et variabilis, et etiam altae requiruntur ad connectores pipelinos. PVDF flanges cudoneae cum collo ad solidam vim et rigiditatem habent, possunt maiora pressioni et ictum onera sustinere, ac variis processui multiplicibus requisitis accommodare possunt..
