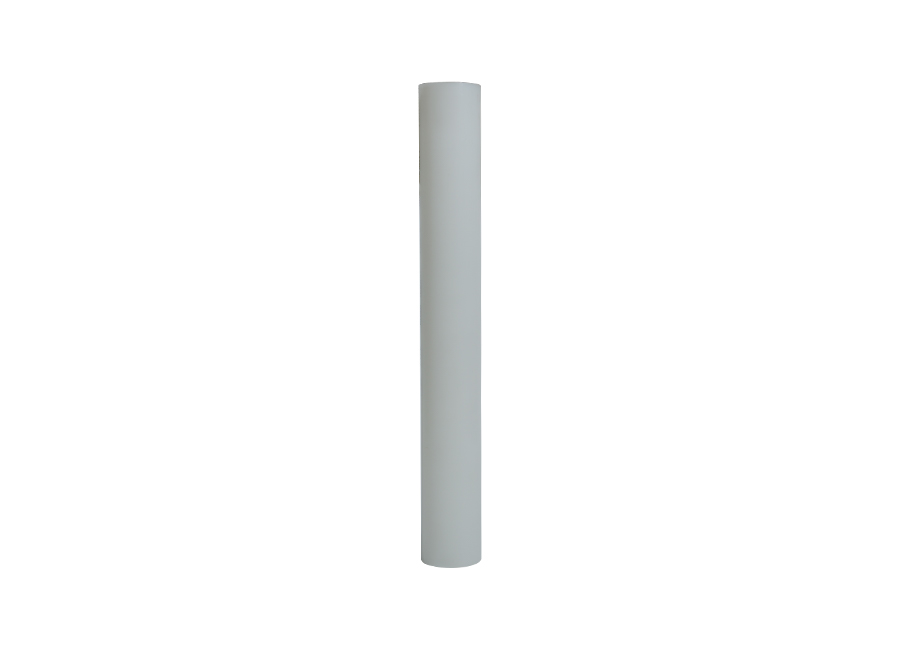

PVDF pipe

Fistula PVDF, quae pro Polyvinylidene Fluoride Tubing significat, est summus effectus fistulae plasticae materia quae late diffusa applicatione ob singulares proprietates physicas et chemicae obtinuit. Hoc genus limbis valde laudatur ob eximiam chemicam corrosionis resistentiam, sive acida validis, bases validis, vel aliis instrumentis corrosivis exponatur, PVDF Pipe mirabilis resistentiae facultates demonstrare potest, diu terminus stabilis operandi fistulae systematis procurans. Praeter egregium corrosionis resistentiam, Pipe Pipe etiam vim mechanicam habet altam. Eius distrahentes vires et flexus validae sunt altissimae, valentes pressurae et virium externarum significantium resistendi, tutum usum fistulae in variis ambitibus operando servando..

ORDER SAMPLES

Materia: PVDF
Pressura Ratings: 1.0MPa, 1.6MPa, 2.0MPa
Connection Methodi: Spigot et Socket, Welding
Color: Alba
Production Signa: ISO 10931, DIN 8077/8078, EN 14577
Densitas: 1.17~1.79 g/cm³
Tab
Diu terminus usus Environmental Temperature Range: -40 ad CL°C
Calor Declinatio Caloris: 112~ 145°C

Product parameter introduction

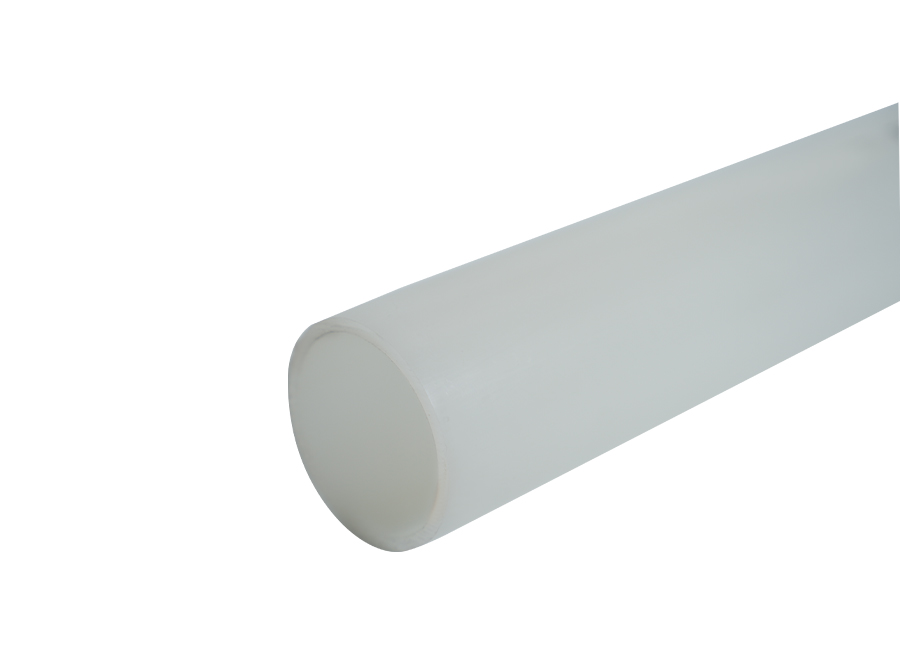

PVDF pipe

PVDF Pipe
Extra diametrum (mm)	1.0MPa		1.6MPa		2.0MPa
Extra diametrum (mm)	S (mm)	Pondus (kg/m)	S (mm)	Pondus (kg/m)	S (mm)	Pondus (kg/m)
16			1.5	0.136	1.5	0.136
20			1.9	0.21	1.9	0.21
25			1.9	0.27	1.9	0.27
33			2.4	0.44	2.4	0.44
42		0.93	2.4	0.56	2.4	0.56
50		1.11	2.9	0.82	2.9	0.82
63	2.5	1.49	3	1.09	3.6	1.299
75	2.5	2.27	3.6	1.56	4.3	1.858
90	2.8	2.88	4.3	2.23	5.1	2.63
110	3.2	3.64	5.3	3.34	6.3	3.971
125	3.9	4.72
140	4.4	5.95
160	5.0	7.32
180	5.6	9.154
200	6.2	10.888
225	7.1	13.639
250	7.6	17.329
280	8.5	21.97
315	9.6	27.965
355	10.8	35.329
400	12.2	43.552
450	13.7	54.554
500	15.2	68.995
560	17
630	19.1

PVDF pipe advantages

1. Fistula PVDF e materia virginali facta est, altae puritatis et nullae immunditie in tibia procuranda, quae periculum corrosionis vel contaminationis intra organum efficaciter vitat, tutum ac certum iter praebet variis transmissionibus fluidorum.
2. PVDF fistula coniungi potest utendi dosel calidorum liquefactionis et nervum et fusionis methodorum. Non solum simplex et celeris institutio est, sed nexus etiam bene signatus est, efficaciter impediens lacus fluidos et integritatem ac salutem systematis pipelini praestans.
3. Tibia densitatem modicam habet, quae vires sufficientes efficit dum pondus minuit et translationem et institutionem expediat.
4. Diuturnum tempus laborantis environment temperaturae Tubingae attingere potest -40~150°C. Sive in ambitibus frigidissimis vel summus temperatus, suam mirabilem observantiam servare potest et variis condicionibus implicatis operandi accommodare.
5. Crystallinitas Tubingae est inter 65% et 78%, ut mirabiles proprietates mechanicas et stabilitatem chemicam. Hoc permittit fistulam stabilitatem conservandi in diuturno usu et extendit ad vitam servitutis.

Applications

01 / 01

Industry chemica

Industry chemica

Limbis PVDF late in industria chemicae adhibetur, praesertim propter miram chemicae corrosionis resistentiam, altam vim mechanicam, et bonum caloris resistentiam. In productione chemica, PVDF fistulae varias chemicorum corrosivorum usus adhibent ut acida, alcali et salia, ut stabilem operationem organorum praebeant et proventus corrosionis impediant. Accedit, late in processibus iracundis adhibendis, quae possunt sustinere ambitus summus temperatus sine facile deformatione vel liquatione, ut continuitatem productionis. In systematis chemicis instrumentis refrigerandis, PVDF fistula efficaciter calorem transferre, exesa substantiarum chemicarum resistere potest, et refrigerationem efficere..
