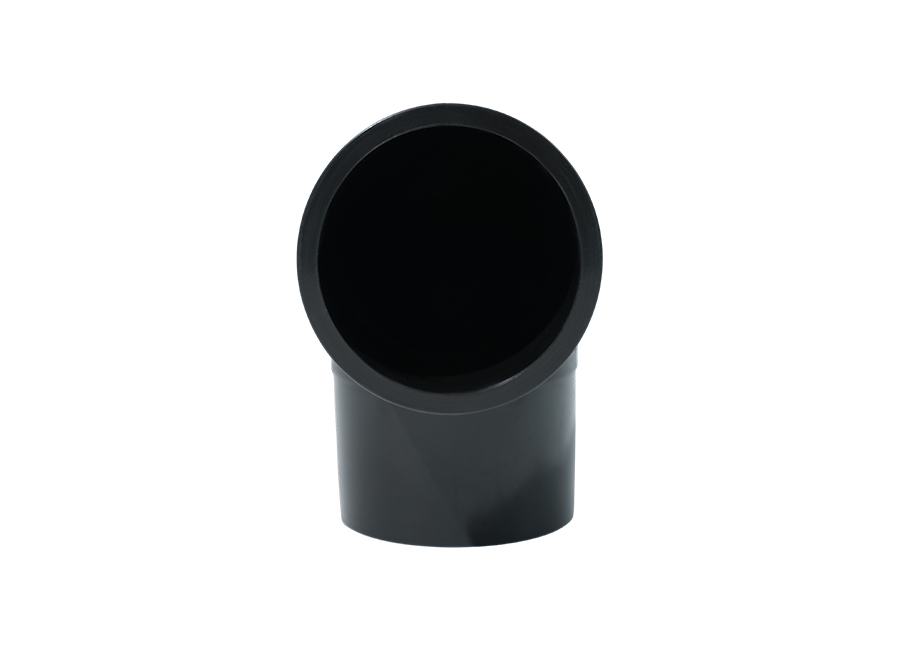

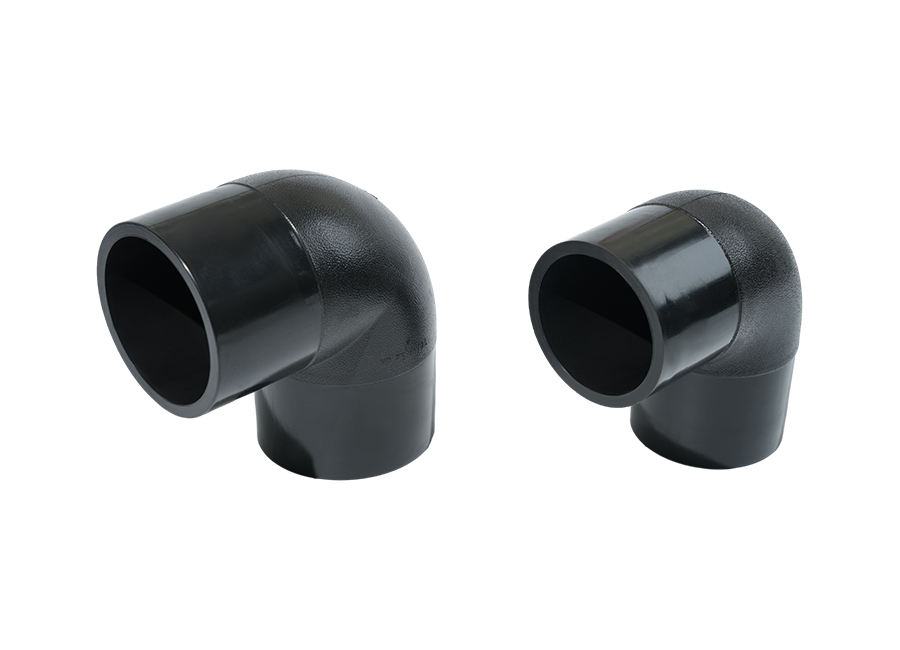

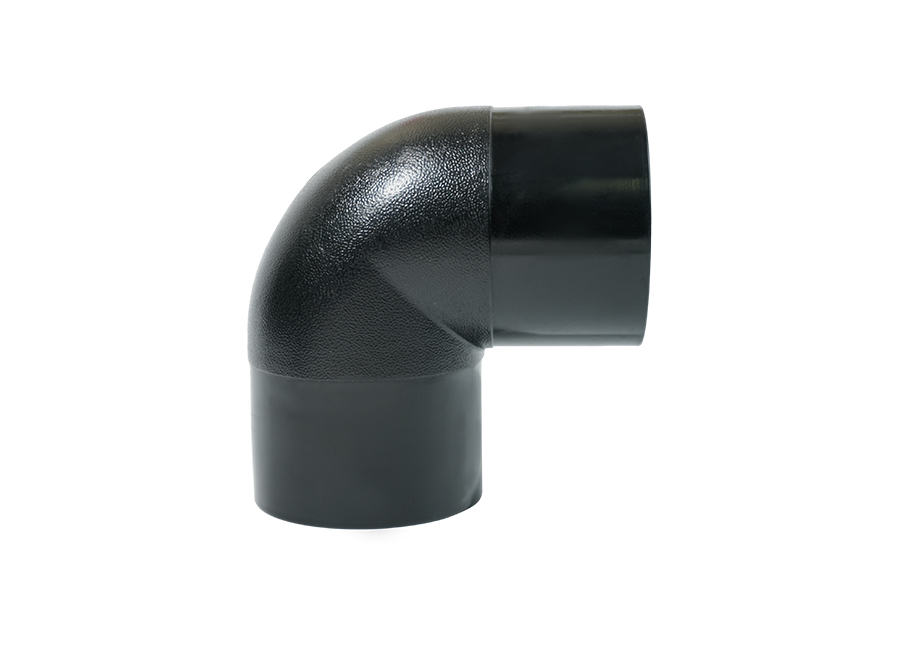

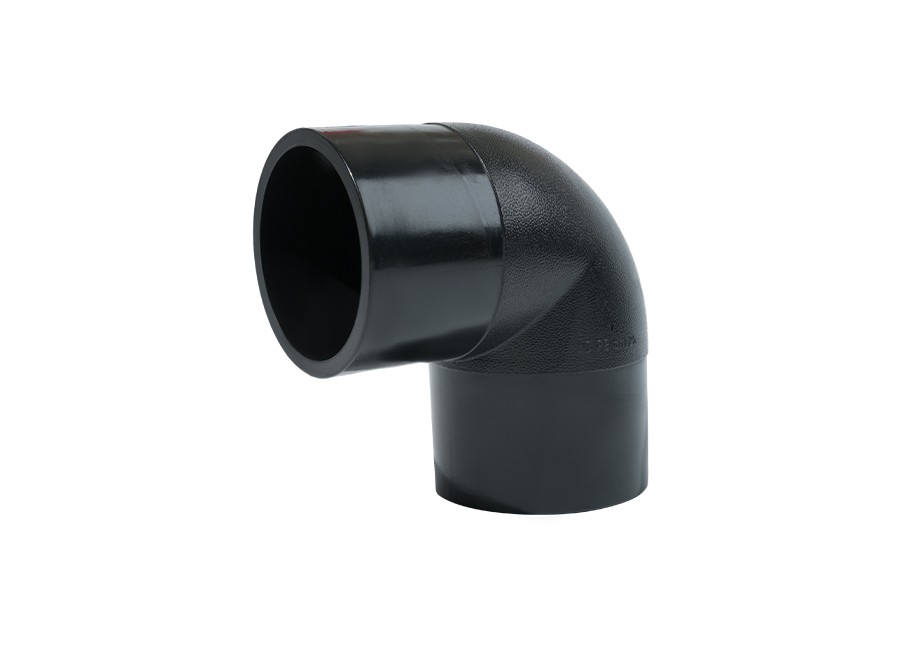

HDPE 90 Gradus Cubitus

In cubito HDPE 90-gradus per Jiangyin Huada est fistula congruens ex materia PE100-gradu facta. Prodest mutare directionem fluidi intra fistulam fluere, permittens fistulas in directum et angulum desideratum connecti et extendere. In architecturae municipali constructionis, liquidae et gasi translationis late adhibetur, et aliae applicationes quae nexus fistularum recti-anguli requirunt, efficaciter cum inceptis pipelinis coniungendis ac pro ratione energiae translationis et constructionis disponendi. Sustinemus OEM et ODM customizationem vestram in variis consuetudinibus necessitatibus occurrere.

Play Video

ORDER SAMPLES

Materia: HDPE PE100
Pressura Classis: PN16 SDR11, PN12.5 SDR13.6, PN10 SDR17
Connexio methodo: Butt eget, Socket eget
Color: Niger, caeruleus.
Vestibulum signa: ISO4427, EN 12201, EN 1555, GB/T 13663.3
Oxidation Induction Time (210°C): ≥20 min
Chromaticity: <5 gradus
Turbido: ≤0.22 NTU
Odorem Lectio: Non odor
PH Value: Proxime 7.9 "
Totalis Solida Solida: 201 mg/L
Oxygeni Press: Proxime 0.6 mg/L
Totalis Carbonis organici: 0.25 mg/L
Visual Claritas: nulla particulae visibilis

Product parameter introduction

HDPE 90 Gradus Cubitus HDPE 90 Gradus Cubitus HDPE 90 Gradus Cubitus

Socket eget
Magnitudo	Pressura Level
DN 20	PN16 SDR11

DN 25	PN16 SDR11
DN 32	PN16 SDR11
DN 40	PN16 SDR11

DN 50	PN16 SDR11

DN 63	PN16 SDR11

DN 75	PN16 SDR11

DN 90	PN16 SDR11

DN 110	PN16 SDR11

Butt Fusion - PN12.5 SDR13.6/PN10 SDR17
Magnitudo	Pressura Level
DN 63	PN12.5 SDR13.6
DN 75	PN12.5 SDR13.6
DN 90	PN12.5 SDR13.6
DN 110	PN12.5 SDR13.6
DN 125	PN12.5 SDR13.6
DN 140	PN12.5 SDR13.6
DN 160	PN12.5 SDR13.6
DN 180	PN12.5 SDR13.6
DN 200	PN12.5 SDR13.6
DN 225	PN12.5 SDR13.6
DN 250	PN12.5 SDR13.6
DN 280	PN12.5 SDR13.6
DN 315	PN10 SDR17
DN 355	PN10 SDR17
DN 400	PN10 SDR17
DN 450	PN10 SDR17
DN 500	PN10 SDR17
DN 560	PN10 SDR17
DN 630	PN10 SDR17
DN 710	PN10 SDR17
DN 800	PN10 SDR17
DN 900	PN10 SDR17
DN 900	PN8 SDR21
DN 1000	PN10 SDR17
DN 1000	PN8 SDR21
DN 1200	PN10 SDR17
DN 1200	PN6 SDR26

Butt Fusion - PN16 SDR11
Magnitudo	Pressura Level
DN 63	PN16 SDR11
DN 75	PN16 SDR11
DN 90	PN16 SDR11
DN 110	PN16 SDR11
DN 125	PN16 SDR11
DN 140	PN16 SDR11
DN 160	PN16 SDR11
DN 180	PN16 SDR11
DN 200	PN16 SDR11
DN 225	PN16 SDR11
DN 250	PN16 SDR11
DN 280	PN16 SDR11
DN 315	PN16 SDR11
DN 355	PN16 SDR11
DN 400	PN16 SDR11
DN 450	PN16 SDR11
DN 500	PN16 SDR11
DN 560	PN16 SDR11
DN 630	PN16 SDR11

HDPE 90 Gradus Cubitus advantages

1. 90 cubiti gradus rectos angulos in limbis systematis vicissitudines consequi possunt, permittens tibias flexibiliter aptare ad varias necessitates layout. Utrum transitus sit a horizontali ad verticalem, verticali ad horizontalem, vel etiam continuos transitus in multipliciter directione, cubitus 90-gradus efficaciter perfici potest, valde simplicior est ratiocinationis ratiocinationis ratio.
2. Subrepens resistentia cubiti 90-graduum est aliis generibus cubitorum, permittens eas figuram stabilem conservare sub diuturno onere sine facili deformatione.
3. Cubitus HDPE 90-gradus bonas proprietates insulationis electricas habet et ad instrumentorum conductivorum translationem adhiberi potest.
4. Cubitus 90-gradus ad specificationes normas ordinatur, processus institutionis simplex et velox faciens. Accedit, propter claram structuram cubiti 90-gradus, curatores sustentationis celeriter collocare et appellare possunt quaestiones quaecunque oriuntur..

Applications

01 / 05

Aquae Supple
Irrigationes
Firefighting
Electric Power Communication
INCILE

Aquae Supple

Gradus cubiti ordinantur ad resistentiam altae pressurae permittens eas sustinere pressuram generatam cum aqua per fistulas influit. Facultatem hanc pressionem tractandi lenis operatio systematis pipelini efficit. Materia in HDPE 90-gradu cubitorum adhibita pendet ad determinandas eorum efficaciam in systematis aquae copia. Materiae hae non solum corrosio-repugnantia et pressioni resistentia sunt, sed etiam longum servitium habent. Hoc sinit 90-gradus cubiti ut protractum tempus in systemate aquarum certo conficere possit.

Learn More

Irrigationes

In systematis rigandi, tibiae variae et multiplices ambitus naturales exponuntur. Haec tamen specialis materialia praestantem obtinet tempestatem resistentiam, efficaciter sustinens damnum environmental et signanter prolongat servitium vitae systematis irrigationis. Egregie, etiam sub asperrimis conditionibus sicut altae pressionis et humiditatis, cubiti partes stabiles effectus conservant et oxidationis degradationis repugnant. Haec materia firmitatem et constantiam systematis irrigationis in diuturno operatione efficit, valde augens irrigationem efficientiam et salutem.

Learn More

Firefighting

HDPE 90-gradus cubiti adhiberi possunt ad fistularum tutelam ignis impositionem. Eorum corrosio et taedium resistentia efficaciter extendere possunt ad vitam servitii pipelini et ad sustentationem gratuita reducere. Sunt leves et faciles ad institutionem, quae ad meliorem constructionem efficientiam et constructionem gratuita minuere possunt.

Learn More

Electric Power Communication

In vi electrica systemata communicationis, pipelinea non solum media ad transportandas necessitates sunt, sed etiam ad causas considerandas ut interventus electromagnetici et salus electrica. Princeps velit exsecutio materiae PE100 efficaciter recludet hodiernam, electromagneticam impedimentum minuere, et sic operationem stabilis systematis communicationis electrici potentiae invigilat.

Learn More

INCILE

In systematis INCILE, pipelines saepe in contactum cum variis purgamentorum et vastorum aquarum. Haec materia efficaciter resistere potest corrosioni et senescente, ita ut servitium vitae in organo vitae extendere possit. Productum longum tempus inductionis oxidationis (≥20min) habet et stabilis effectus sub condicione durare potest, ut altae pressionis et humiditatis altae, non facile oxidationis degradationis subeundae, ut diuturnum tempus stabilem operationem systematis INCILEO conservet.

Learn More
